CL-05 MİD Double Safety Single Pinned Double Winged Lift Landing Door Locking Device
General Information
- Right and Left direction available
- Please review the tables and figures below to choose the right direction. (View from the floor landing)
- 2 Years of Warranty
- Top Quality and Technical Specifications
You can download product-related documents and images from the links below.
Product Chart
* Please review the tables and figures below to choose the right direction. (View from the floor landing)

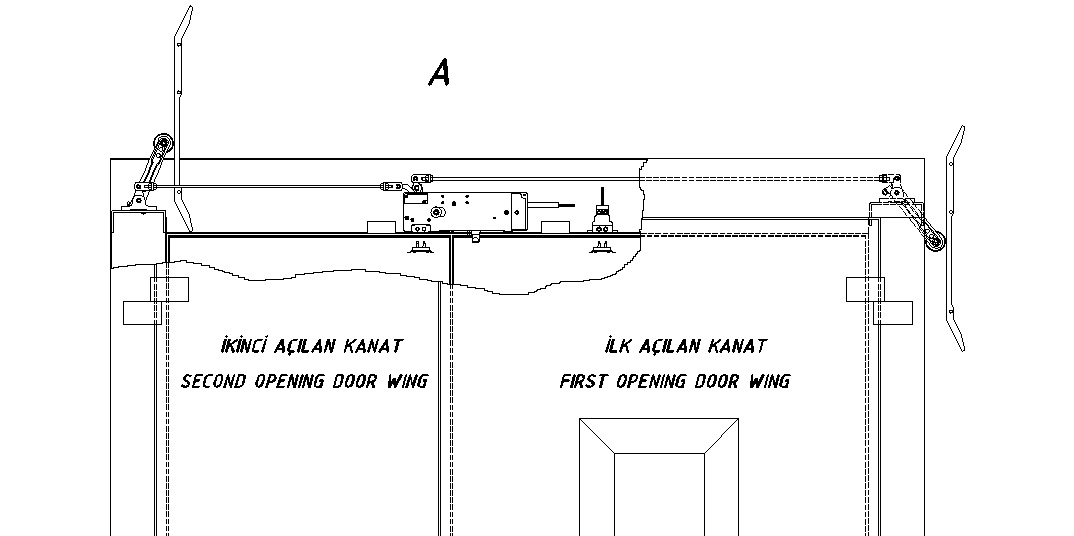

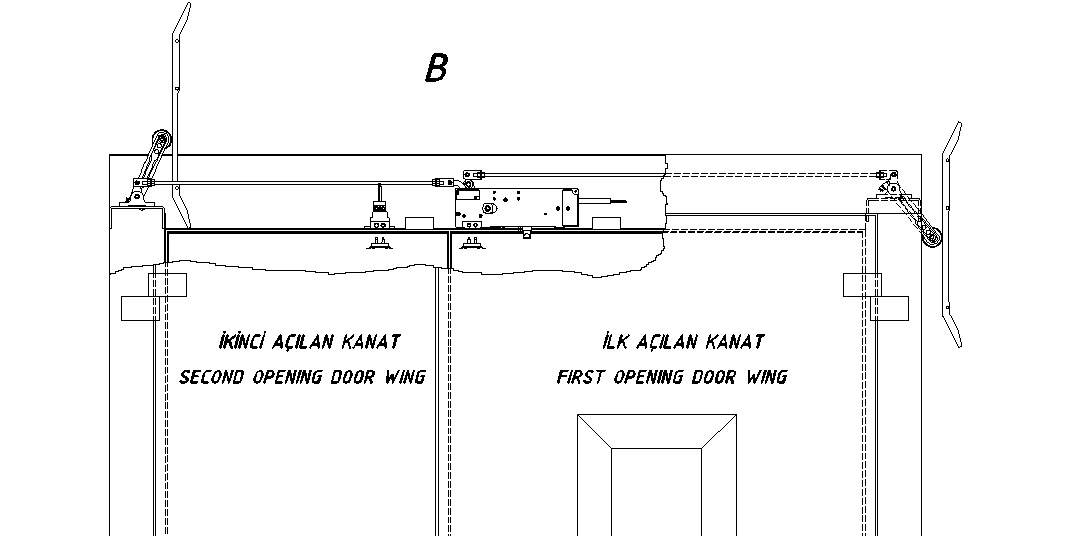

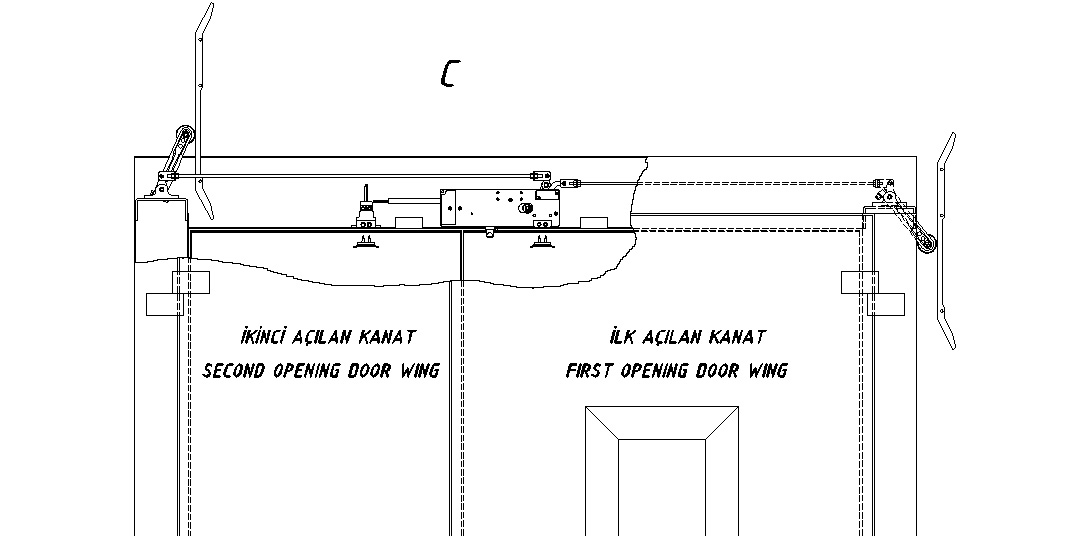

Figure | First Opening Door wing | Lock Direction |
|---|---|---|
A | RIGHT | LEFT |
B | RIGHT | LEFT |
C | RIGHT | RIGHT |
A | LEFT | RIGHT |
B | LEFT | RIGHT |
C | LEFT | LEFT |
* Canlift recommends M6 threaded rod to ensure the connection between the locking device and the unlock assembly.
