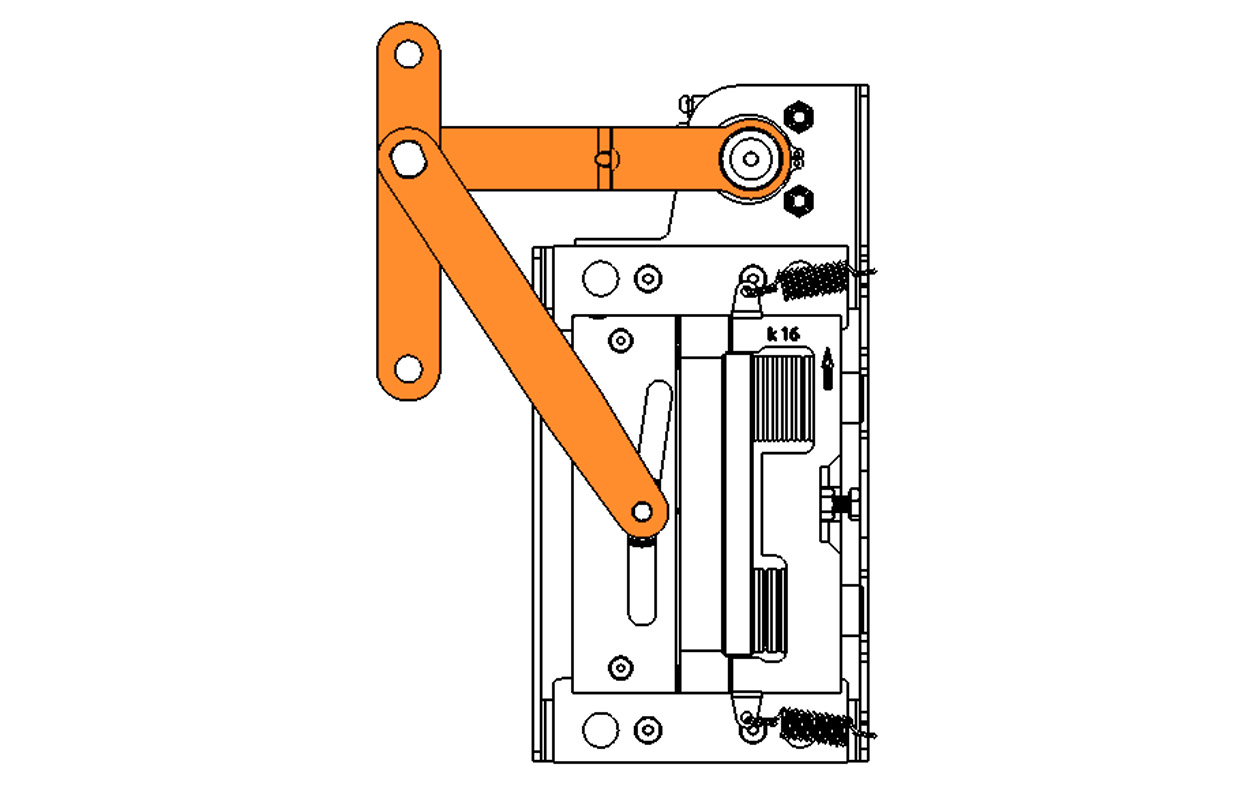

CL-SG-P-B/U-T112 Bi and Uni Directional Progressive Safety Gear

As per the relevant articles of the TS EN 81-20 standard (5.2.5.4 protection of any clearance under the shaft),Offers sync from center solution for Balancing Counterweights, as well as “L” Type Car Frame.

Direction arrow on the safety gear must be mounted facing upwards.
Before the first cabin movement, the protector grease on the guide rail must be well cleaned.
Bidirectional safety gear provides braking that will overcome the effect of the counterweight providing upward acceleration. It prevents damage to system components by providing more slip compared to downward braking.

• Sync steel tubes : 3/4” Gas Pipes
• Max. Speed : 2,5 m/s
• Max P+Q : 4150 kg
• Guide rail thickness : 9-10-14-16 mm
