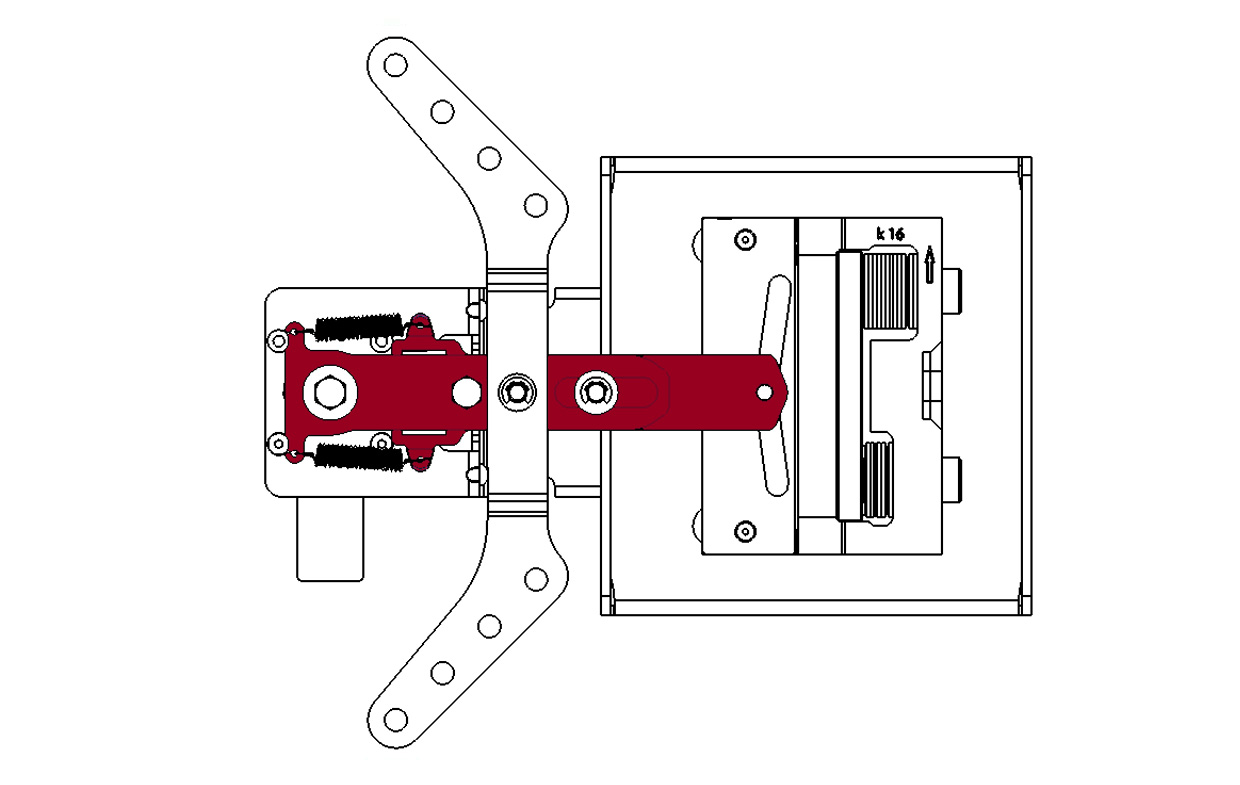

Assembly Type : With Support Frame Center Lever
General Information
- Suitable for general use.
You can download product-related documents and images from the links below.
Important Warning
- Direction arrow on the safety gear must be mounted facing upwards.
- Before the first cabin movement, the protector grease on the guide rail must be well cleaned.
- Bidirectional safety gear provides braking that will overcome the effect of the counterweight providing upward acceleration. It prevents damage to system components by providing more slip compared to downward braking.
Technical Information
• Sync steel tubes : 3/4” Gas Pipes
• Max. Speed : 2,5 m/s
• Max P+Q : 4150 kg
• Guide rail thickness : 9-10-14-16 mm
